Datasheet AD825 (Analog Devices) - 11

ПроизводительAnalog Devices
ОписаниеLow Cost, General-Purpose High Speed JFET Amplifier
Страниц / Страница12 / 11 — Data Sheet. AD825. SECOND-ORDER LOW-PASS FILTER. +5V. 24pF. 0.1. 9.31k. …
ВерсияG
Формат / Размер файлаPDF / 319 Кб
Язык документаанглийский

Data Sheet. AD825. SECOND-ORDER LOW-PASS FILTER. +5V. 24pF. 0.1. 9.31k. VOUT. 6pF. –5V. –10. –20. –30. –40. –50. –60. –70. HIGH FREQUENCY REJECTION (dB)

Data Sheet AD825 SECOND-ORDER LOW-PASS FILTER +5V 24pF 0.1 9.31k VOUT 6pF –5V –10 –20 –30 –40 –50 –60 –70 HIGH FREQUENCY REJECTION (dB)

69 предложений от 31 поставщиков
Интегральные микросхемы Аналоговая техника — усилители — инструменты, ОУ (операционные), буферные
Allelco
Весь мир
AD825ARZ
Analog Devices
77 ₽
ЗУМ-СМД
Россия
AD825ARZ
Analog Devices
103 ₽
Элрус
Россия
AD825ARZ-REEL7
Analog Devices
от 312 ₽
Кремний
Россия и страны СНГ
AD825ARZ-16
Analog Devices
по запросу
LED-драйверы MOSO для промышленного и архитектурного освещения доступны со склада КОМПЭЛ

Модельный ряд для этого даташита

Текстовая версия документа

link to page 11 link to page 11

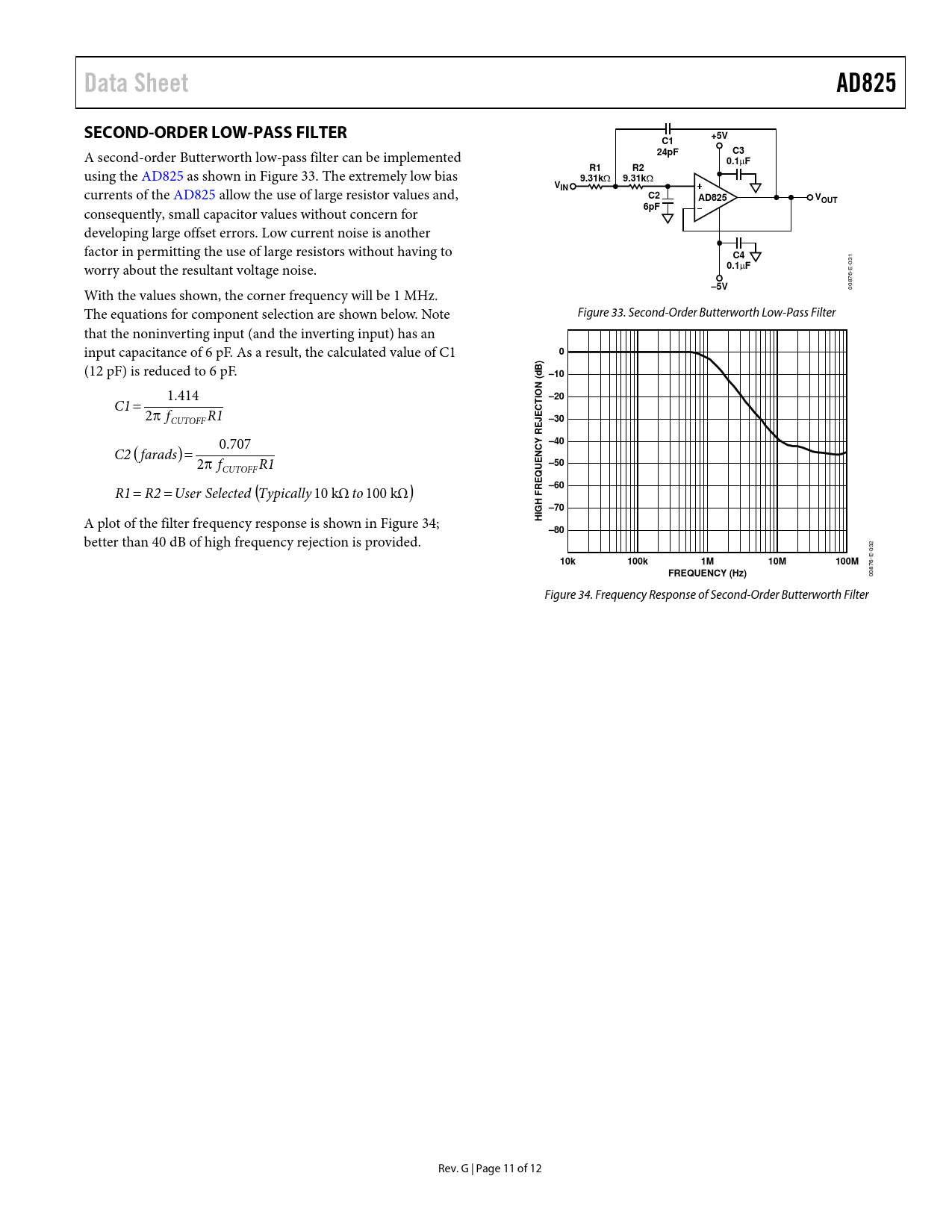

Data Sheet AD825 SECOND-ORDER LOW-PASS FILTER +5V C1
