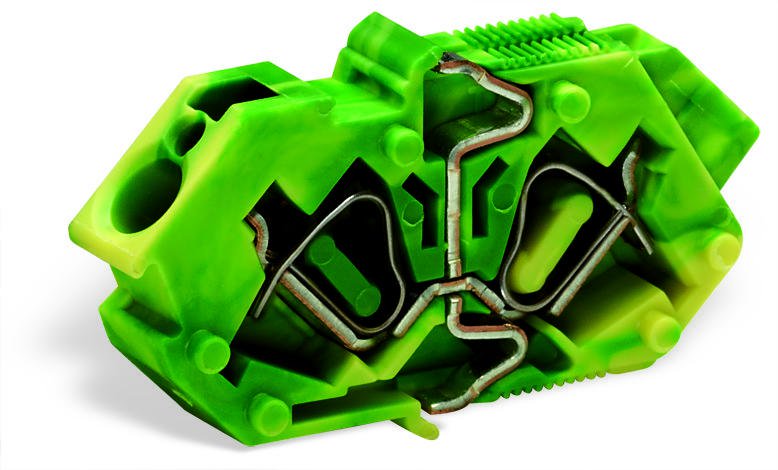

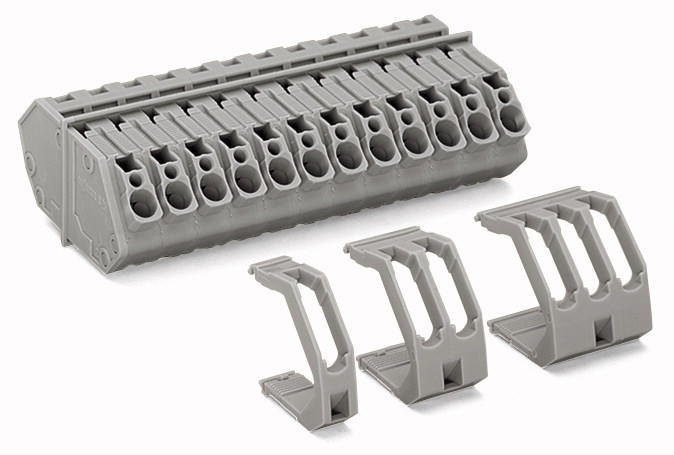

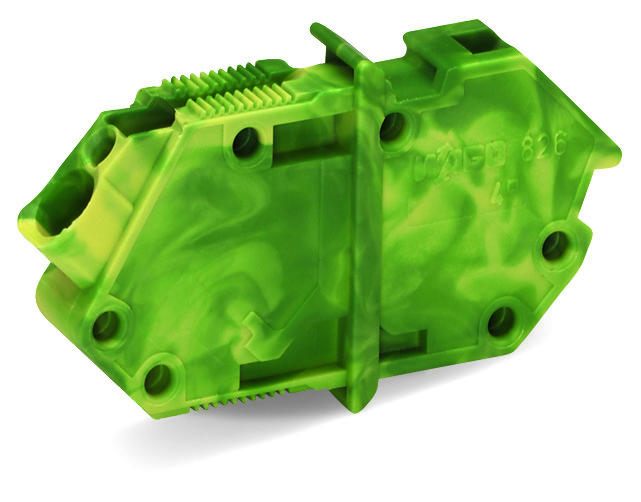

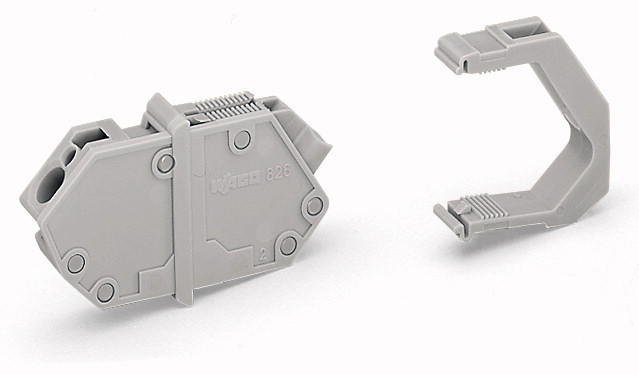

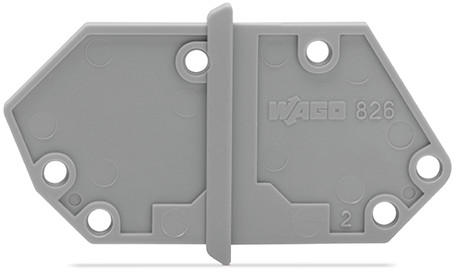

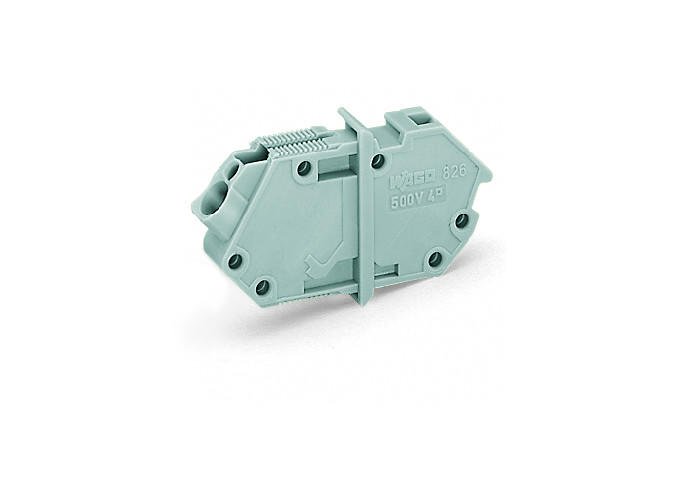

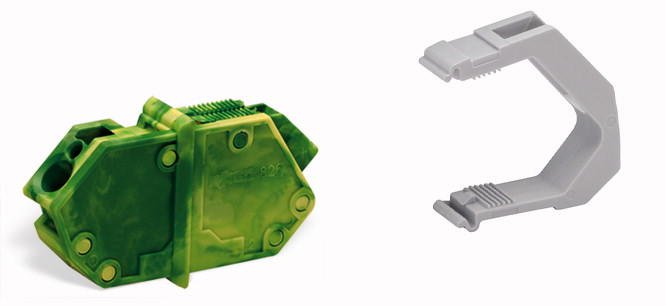

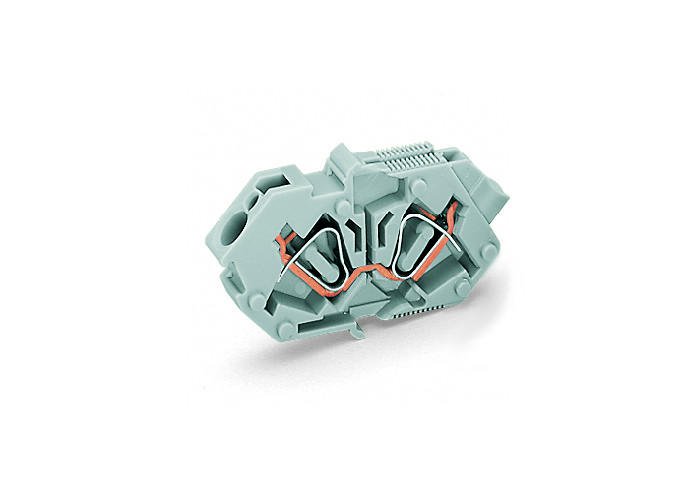

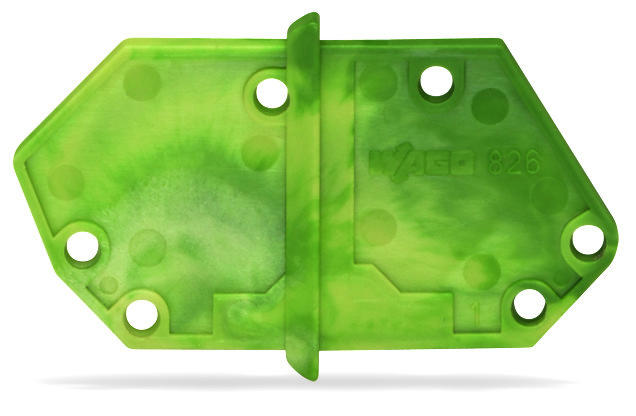

Datasheet Wago 826 — Даташит

Производитель	Wago
Серия	826

Цены

Купить 826-155 на РадиоЛоцман.Цены — от 59 до 1 387 ₽ 9 предложений от 5 поставщиков Фиксирующая крышка Вместо 1 конт.
Akcel Весь мир	826-155 Wago	от 59 ₽
Амарид-Электро Россия	826-155 Wago Оф. дистрибьютор	83 ₽
Элитан Россия	826-155 Wago	1 387 ₽
Кремний Россия и страны СНГ	826-155	по запросу

LED-драйверы MOSO для индустриальных приложений

Параметры

Parameters / Models	826-155	826-156	826-157	826-158	826-158/000-006	826-158/000-016	826-159	826-159/000-006	826-159/000-016	826-160	826-160/000-006	826-160/000-016	826-161	826-161/000-006	826-161/000-016	826-162	826-163	826-164	826-165	826-166	826-167	826-168	826-169	826-170	826-171	826-172
Actuation type							Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool
Clamping spring material							Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)
Цвет	gray	gray	gray	gray	blue	green-yellow	gray	blue	green-yellow	gray	blue	green-yellow	gray	blue	green-yellow	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray
Connection technology							CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®
Contact material							Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)
Contact plating							tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Country of origin	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE
Габариты: глубина				42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch	42.5 mm / 1.673 inch
Fine-stranded conductor							0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG
Fine-stranded conductor with ferrule with plastic collar							0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²
Fine-stranded conductor with ferrule without plastic collar							0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²
Fire load, MJ	0.021	0.044	0.068	0.02	0.02	0.02	0.082	0.082	0.082	0.08	0.08	0.08	0.123	0.123	0.123	0.226	0.33	0.43	0.534	0.638	0.738	0.842	0.946	1.046	1.15	1.254
Flammability class per UL94							V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0
GTIN	4017332607162	4017332607179	4017332607186	4017332607193	4017332578004	4017332607216	4044918532433	4044918532099	4044918546256	4044918532631	4044918532464	4044918546843	4044918532457	4044918532112	4044918546270	4044918532679	4044918532709	4044918532747	4044918532754	4044918532785	4044918532815	4044918532822	4044918532839	4044918532846	4044918532853	4044918532860
Height				20 mm / 0.787 inch	20 mm / 0.787 inch	20 mm / 0.787 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch	23.55 mm / 0.927 inch
Insulating material							Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)							(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range							-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C
Material group							I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I
Mounting type	Locking claw	Locking claw	Locking claw				Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw	Locking claw
Number of Poles	2	3	4				1	1	1	1	1	1	1	1	1	2	3	4	5	6	7	8	9	10	11	12
Number of connection types							2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
Number of levels							1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Pin spacing							7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)	7 mm (0.276 inch)
Product Group	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)		4 (Printed Circuit)	4 (Printed Circuit)		4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)
Rated current, A							32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32
Rated impulse voltage (II / 2), kV							4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 2), kV							4	4	6	4	4	6	4	4	6	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 3), kV							4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated voltage (II / 2), В							630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630
Rated voltage (III / 2), В							320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
Rated voltage (III / 3), В							320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
Ratings note							Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.	Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (line-to-line) per IEC/EN 60664-1.
Solid conductor							0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG
Strip length							9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch
Total number of connection points							2	2	2	2	2	2	2	2	2	4	6	8	10	12	14	16	18	20	22	24
Total number of potentials							1	1	1	1	1	1	1	1	1	2	3	4	5	6	7	8	9	10	11	12
Type of mounting							Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting
Вес, г	0.83	1.64	2.6	0.92	0.9	0.976	4.71	4.8	4.79	4.71	4.737	5.4	6.25	6.031	6.691	12.2	16.745	21.972	29	35.064	37.99	46.01	51.2	53.974	59.361	64.748
Ширина				1.5 mm / 0.059 inch	1.5 mm / 0.059 inch	1.5 mm / 0.059 inch	8.6 mm / 0.339 inch	7 mm / 0.276 inch	7 mm / 0.276 inch	7 mm / 0.276 inch	7 mm / 0.276 inch	7 mm / 0.276 inch	8.6 mm / 0.339 inch	7 mm / 0.276 inch	7 mm / 0.276 inch	15.5 mm / 0.61 inch	22.5 mm / 0.886 inch	29.5 mm / 1.161 inch	36.5 mm / 1.437 inch	43.5 mm / 1.713 inch	50.5 mm / 1.988 inch	57.5 mm / 2.264 inch	64.5 mm / 2.539 inch	71.5 mm / 2.815 inch	78.5 mm / 3.091 inch	85.5 mm / 3.366 inch
