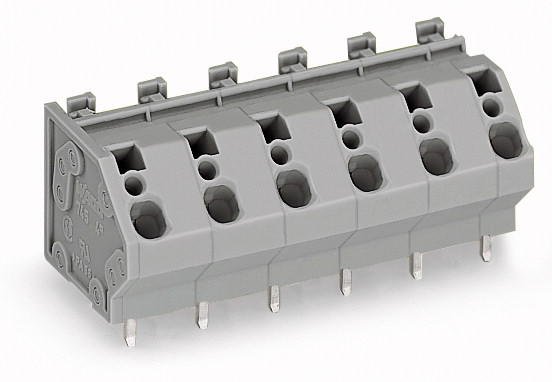

Datasheet Wago 745 — Даташит
| Производитель | Wago |
| Серия | 745 |
Цены
 Купить 745-100 на РадиоЛоцман.Цены — от 10 до 2 823 ₽33 предложений от 17 поставщиков Стандартные краевые разъемы CONNECTOR - PRESSFIT | |||
| 745-100 Wago | от 10 ₽ | ||
| 745-100 Wago | 16 ₽ | ||
| 745100-1 TE Connectivity | по запросу | ||
| 745-100-520-201 | по запросу | ||
Параметры

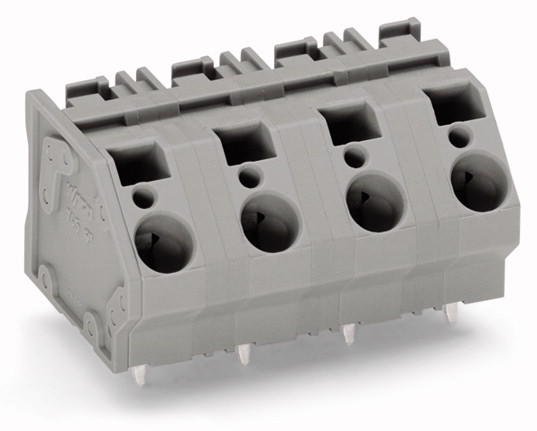

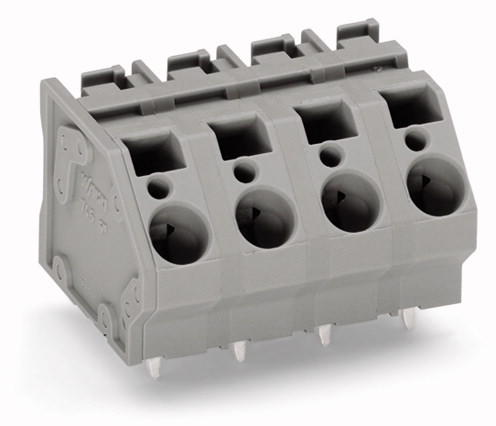

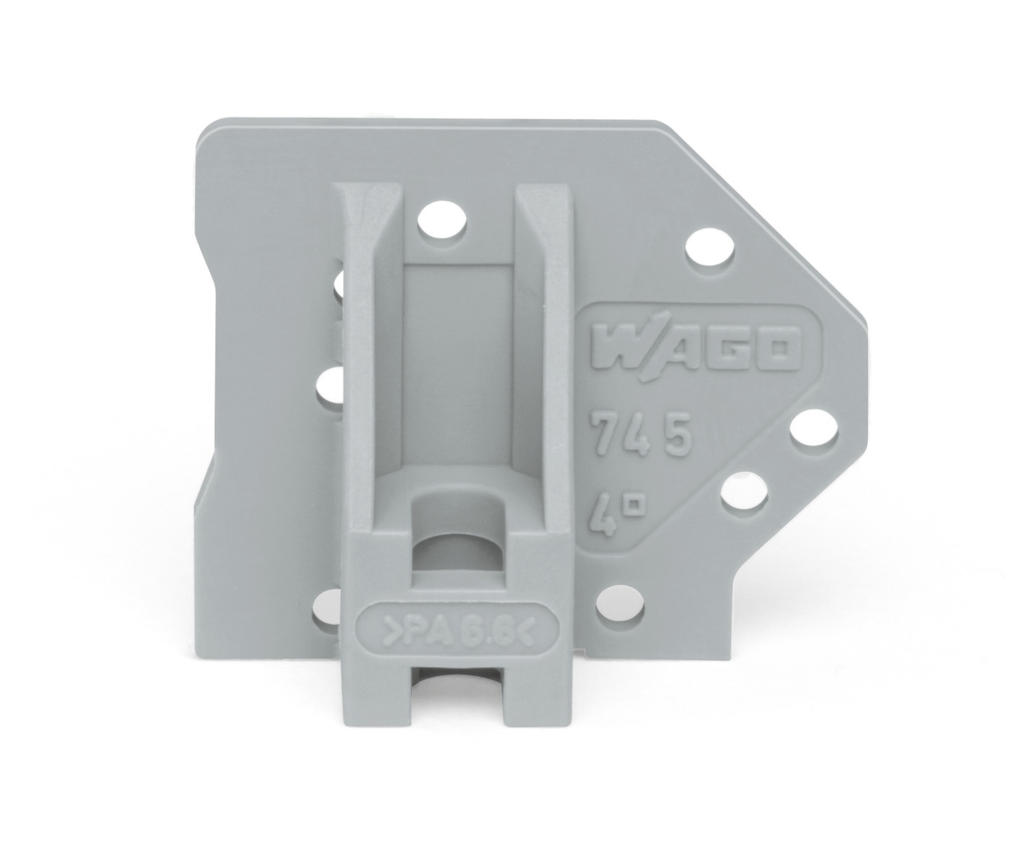

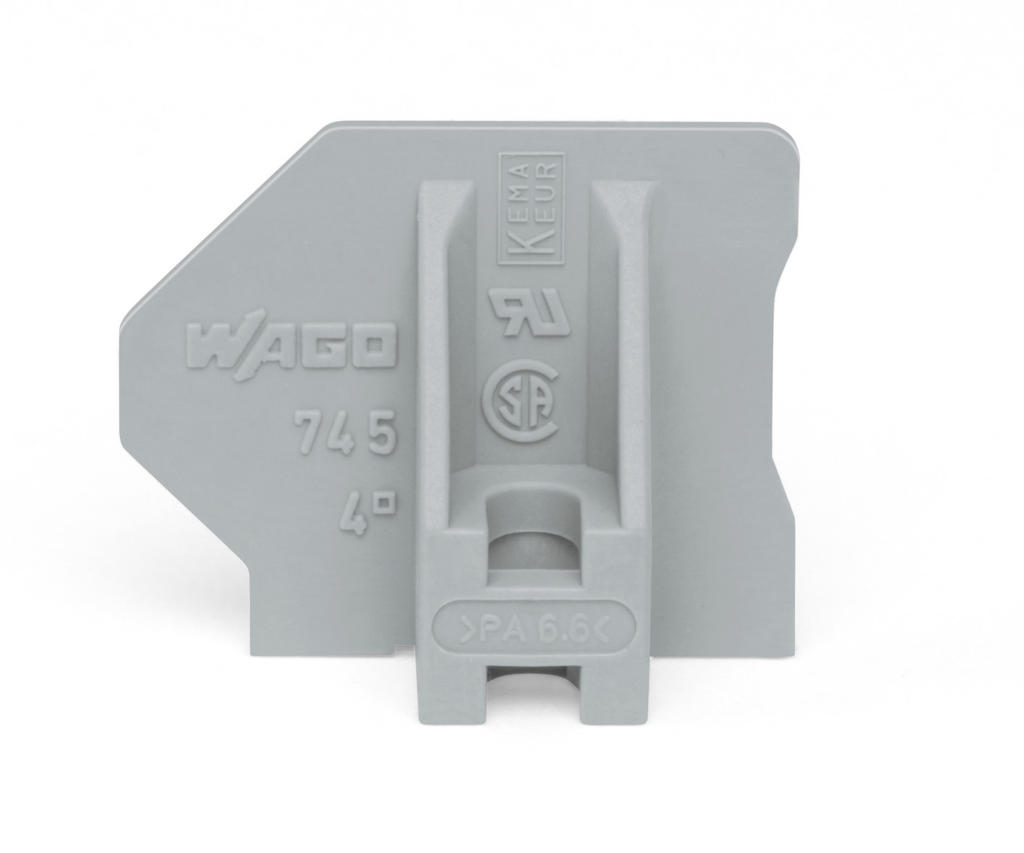

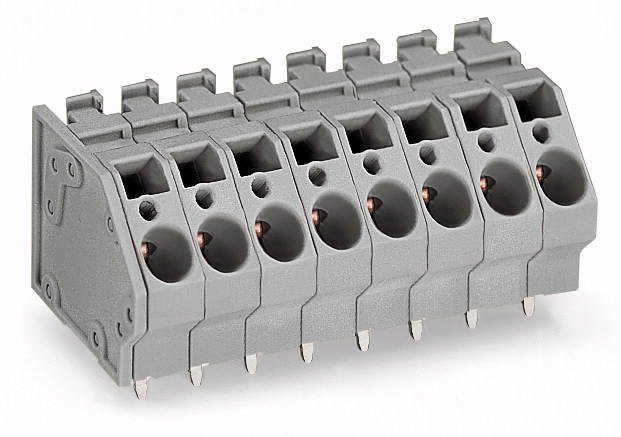

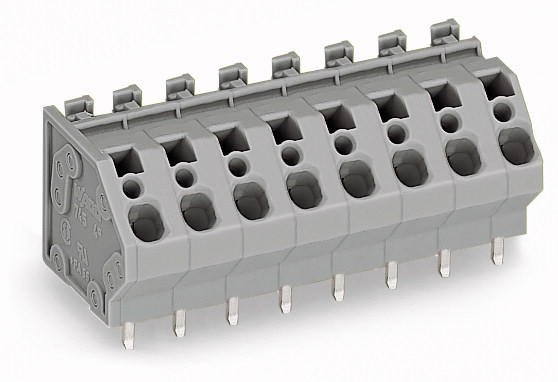

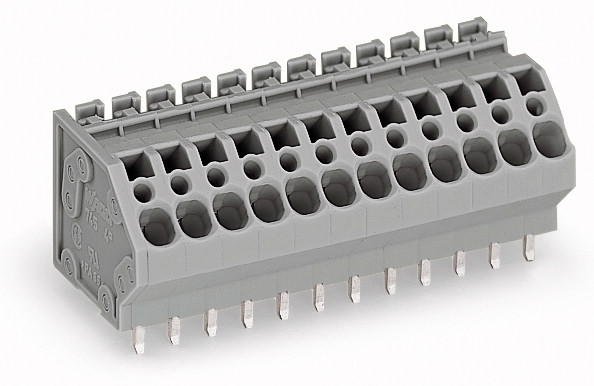

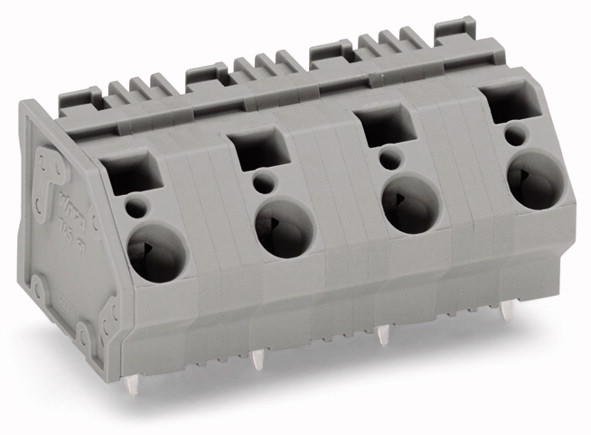

| Parameters / Models | 745-100 | 745-102 | 745-102/005-000 | 745-103 | 745-104 | 745-104/005-000 | 745-105 | 745-105/005-000 | 745-106 | 745-107 | 745-108 | 745-108/000-006 | 745-109 | 745-110 | 745-112 | 745-1352 | 745-1353 | 745-1353/000-006 | 745-1354 | 745-1355 | 745-1356 | 745-1357 | 745-1358 | 745-1359 | 745-1360 | 745-1362 | 745-140 | 745-1402 | 745-1403 | 745-1404 | 745-1405 | 745-1406 | 745-1407 | 745-1408 | 745-1409 | 745-1410 | 745-1412 | 745-145 | 745-1452 | 745-1453 | 745-1454 | 745-1455 | 745-1456 | 745-1457 | 745-1458 | 745-1459 | 745-1460 | 745-1462 | 745-152 | 745-152/005-000 | 745-153 | 745-153/000-006 | 745-154 | 745-154/000-006 | 745-155 | 745-156 | 745-157 | 745-157/005-000 | 745-158 | 745-159 | 745-160 | 745-162 | 745-180 | 745-181 | 745-182 | 745-183 | 745-184 | 745-185 | 745-190 | 745-191 | 745-192 | 745-193 | 745-194 | 745-195 | 745-202 | 745-202/005-000 | 745-203 | 745-204 | 745-204/000-023 | 745-205 | 745-206 | 745-207 | 745-208 | 745-209 | 745-210 | 745-212 | 745-280 | 745-281 | 745-283 | 745-284 | 745-285 | 745-300 | 745-302 | 745-302/005-000 | 745-303 | 745-303/000-016/999-950 | 745-303/005-000 | 745-304 | 745-304/005-000 | 745-305 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Actuation type | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | |||||||||||||||||||||
| Clamping spring material | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | |||||||||||||||||||||
| Цвет | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | blue | gray | gray | gray | gray | gray | blue | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | gray | blue | gray | blue | gray | gray | gray | gray | gray | gray | gray | gray | copper-colored | copper-colored | copper-colored | copper-colored | copper-colored | copper-colored | copper-colored | copper-colored | copper-colored | copper-colored | copper-colored | copper-colored | gray | gray | gray | gray | green | gray | gray | gray | gray | gray | gray | gray | copper-colored | copper-colored | copper-colored | copper-colored | copper-colored | gray | gray | gray | gray | green-yellow | gray | gray | gray | gray |
| Conductor entry angle to the PCB, ° | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | |||||||||||||||||||||
| Connection technology | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | |||||||||||||||||||||
| Contact material | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | ||||
| Contact plating | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | ||||
| Country of origin | CH | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | CH | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | CH | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | CH | CH | CH | CH | CH | CH | CH | CH | CH | CH | CH | CH | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | PL | CH | CH | CH | CH | CH | CH | PL | PL | PL | PL | PL | PL | PL | PL |
| Габариты: глубина | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 22.9 mm / 0.902 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 22.9 mm / 0.902 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 22.9 mm / 0.902 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | |||||||||||||||||
| Drilled hole diameter (tolerance), мм | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.5(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.5(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | 1.8(+ 0.1) | |||||||||||||||||||||
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 4 mm² / 24 … 12 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | |||||||||||||||||||||
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | |||||||||||||||||||||
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 2.5 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | 0.25 … 4 mm² | |||||||||||||||||||||
| Fire load, MJ | 0.014 | 0.078 | 0.112 | 0.11 | 0.142 | 0.176 | 0.174 | 0.208 | 0.206 | 0.238 | 0.27 | 0.269 | 0.302 | 0.334 | 0.398 | 0.194 | 0.294 | 0.394 | 0.494 | 0.594 | 0.694 | 0.794 | 0.894 | 0.994 | 1.194 | 0.027 | 0.221 | 0.348 | 0.475 | 0.602 | 0.729 | 0.856 | 0.983 | 1.11 | 1.237 | 1.491 | 0.021 | 0.248 | 0.402 | 0.556 | 0.71 | 0.864 | 1.018 | 1.172 | 1.326 | 1.48 | 1.788 | 0.094 | 0.128 | 0.142 | 0.19 | 0.238 | 0.286 | 0.334 | 0.368 | 0.382 | 0.43 | 0.478 | 0.574 | 0.108 | 0.142 | 0.17 | 0.232 | 0.294 | 0.356 | 0.418 | 0.48 | 0.542 | 0.604 | 0.728 | 0.021 | 0.167 | 0.224 | 0.24 | 0.297 | 0.313 | 0.37 | 0.386 | ||||||||||||||||||||||
| Flammability class per UL94 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | |||||||||||||||||||||
| GTIN | 4017332411851 | 4044918671002 | 4044918299336 | 4044918671026 | 4044918671033 | 4044918299480 | 4044918671057 | 4044918299572 | 4044918671071 | 4044918671101 | 4044918671118 | 4044918632263 | 4044918671125 | 4044918671132 | 4044918671149 | 4045454448226 | 4045454472221 | 4055143695824 | 4045454472238 | 4045454472245 | 4045454472252 | 4045454472269 | 4045454472276 | 4045454472283 | 4045454472290 | 4045454427245 | 4017332607759 | 4045454448202 | 4045454463380 | 4045454625467 | 4045454623760 | 4045454376338 | 4045454625504 | 4045454625535 | 4045454625542 | 4045454625559 | 4045454427221 | 4017332539647 | 4045454504427 | 4045454552206 | 4045454625641 | 4045454625658 | 4045454625665 | 4045454625672 | 4045454625689 | 4045454625726 | 4045454625788 | 4045454427238 | 4044918671187 | 4044918299855 | 4044918671200 | 4055143463058 | 4044918632300 | 4055143463065 | 4044918671231 | 4044918671248 | 4044918671262 | 4044918300025 | 4044918842440 | 4017332607841 | 4044918671279 | 4044918671286 | 4044918303255 | 4044918303262 | 4044918303279 | 4044918303286 | 4044918303293 | 4044918303316 | 4044918303323 | 4044918303330 | 4044918303347 | 4044918303354 | 4044918303361 | 4044918303378 | 4044918671309 | 4044918300070 | 4044918671316 | 4044918671323 | 4055143455923 | 4044918671347 | 4044918671354 | 4044918671361 | 4044918671378 | 4044918671385 | 4044918671392 | 4044918671415 | 4044918303385 | 4044918303392 | 4044918303415 | 4044918303422 | 4044918303439 | 4017332608152 | 4044918302074 | 4044918302098 | 4044918302104 | 4055143489669 | 4044918302128 | 4044918302135 | 4044918302166 | 4044918302180 |
| Height | 19 mm / 0.748 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 19 mm / 0.748 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 19 mm / 0.748 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | 27.5 mm / 1.083 inch | |||||||||||||||||
| Height from the surface | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 19 mm / 0.748 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | 23 mm / 0.906 inch | |||||||||||||||||||||
| Insulating material | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | |||||||||||||||||||||
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | ||||||||||||||||||||||
| Limit temperature range | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | |||||||||||||||||||||
| Material group | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | |||||||||||||||||||||
| Mounting type | Mounting flange | Mounting flange | Mounting flange | Mounting flange | Mounting flange | Mounting flange | Mounting flange | Mounting flange | Mounting flange | Mounting flange | Mounting flange | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of Poles | 2 | 2 | 3 | 4 | 4 | 5 | 5 | 6 | 7 | 8 | 8 | 9 | 10 | 12 | 2 | 3 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 6 | 7 | 7 | 8 | 9 | 10 | 12 | 2 | 2 | 3 | 4 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 | |||||||||||||||||||||
| Number of connection types | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||||||||
| Number of jumper slots | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||||||||
| Number of solder pins per potential | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||||||||||||||
| PCB contact | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | THT | |||||||||||||||||||||
| Packaging type | BOX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pin spacing | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 12.5 mm (0.492 inch) | 12.5 mm (0.492 inch) | 12.5 mm (0.492 inch) | 12.5 mm (0.492 inch) | 12.5 mm (0.492 inch) | 12.5 mm (0.492 inch) | 12.5 mm (0.492 inch) | 12.5 mm (0.492 inch) | 12.5 mm (0.492 inch) | 12.5 mm (0.492 inch) | 15 mm (0.591 inch) | 15 mm (0.591 inch) | 15 mm (0.591 inch) | 15 mm (0.591 inch) | 15 mm (0.591 inch) | 15 mm (0.591 inch) | 15 mm (0.591 inch) | 15 mm (0.591 inch) | 15 mm (0.591 inch) | 15 mm (0.591 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 5 mm (0.197 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 10 mm (0.394 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | 7.5 mm (0.295 inch) | ||||
| Product Group | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | |||||
| Rated current, A | 32 | 20 | 32 | 32 | 20 | 32 | 20 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | 32 | 20 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 20 | 32 | 32 | 32 | 32 | 32 | 20 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 41 | 32 | 41 | 32 | 41 | 32 | 41 | ||||||||||||||||||||||
| Rated current (Ex e II), A | 37 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated current (Ex e II) with jumper, A | 31 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated impulse voltage (II / 2), kV | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||||||||||||||||||
| Rated impulse voltage (III / 2), kV | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||||||||||||||||||
| Rated impulse voltage (III / 3), kV | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||||||||||||||||||
| Rated voltage (II / 2), В | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | ||||||||||||||||||||||
| Rated voltage (III / 2), В | 320 | 250 | 320 | 320 | 250 | 320 | 250 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 630 | 500 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 500 | 630 | 630 | 630 | 630 | 1000 | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 630 | 400 | 630 | 400 | 630 | 400 | 630 | ||||||||||||||||||||||
| Rated voltage (III / 3), В | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | ||||||||||||||||||||||
| Rated voltage EN (Ex e II), В | 275 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Solder pin arrangement | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | over the entire terminal strip, in line | |||||||||||||||||||||
| Solder pin dimensions | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 0.8 x 1.2 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | 1 x 1.4 mm | |||||||||||||||||||||
| Solder pin length, мм | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | |||||||||||||||||||||
| Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | 0.2 … 6 mm² / 24 … 10 AWG | |||||||||||||||||||||
| Strip length | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 8 … 9 mm / 0.31 … 0.35 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | 11 … 12 mm / 0.43 … 0.47 Inch | |||||||||||||||||||||
| Total number of connection points | 2 | 2 | 3 | 4 | 4 | 5 | 5 | 6 | 7 | 8 | 3 | 9 | 10 | 12 | 2 | 3 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 6 | 7 | 7 | 8 | 9 | 10 | 12 | 2 | 2 | 3 | 4 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 | |||||||||||||||||||||
| Total number of potentials | 2 | 2 | 3 | 4 | 4 | 5 | 5 | 6 | 7 | 8 | 8 | 9 | 10 | 12 | 2 | 3 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 6 | 7 | 7 | 8 | 9 | 10 | 12 | 2 | 2 | 3 | 4 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 | |||||||||||||||||||||
| Type of mounting | snap-on type | Panel mounting | Panel mounting | Panel mounting | Screw mounting | Screw mounting | Panel mounting | Panel mounting | Panel mounting | snap-on type | Panel mounting | Panel mounting | Panel mounting | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Вес, г | 0.452 | 4.462 | 5.618 | 6.467 | 8.472 | 9.628 | 10.477 | 11.633 | 12.482 | 14.487 | 16.492 | 16.436 | 18.497 | 20.502 | 24.512 | 11.104 | 16.76 | 16.977 | 22.416 | 28.072 | 33.728 | 39.384 | 45.04 | 50.696 | 56.352 | 67.664 | 0.895 | 11.999 | 18.55 | 25.101 | 31.652 | 38.203 | 44.754 | 51.305 | 57.856 | 64.407 | 77.509 | 0.713 | 12.894 | 20.34 | 27.786 | 35.232 | 42.678 | 50.124 | 57.57 | 65.016 | 72.462 | 87.354 | 4.984 | 6.14 | 7.511 | 7.496 | 10.038 | 10.026 | 12.565 | 15.092 | 17.619 | 18.775 | 20.146 | 22.673 | 25.2 | 30.254 | 9.245 | 0.916 | 1.849 | 2.773 | 1.717 | 4.622 | 13.868 | 1.022 | 0.81 | 4.16 | 1.89 | 2.42 | 5.462 | 6.618 | 8.467 | 11.472 | 11.389 | 14.477 | 17.482 | 20.487 | 23.492 | 26.497 | 29.502 | 35.512 | 5.5 | 1.17 | 5.547 | 2.1 | 2.66 | 0.687 | 10.209 | 12.11 | 14.97 | 14.913 | 16.871 | 19.731 | 21.632 | 24.492 |
| Ширина | 1.5 mm / 0.059 inch | 11.5 mm / 0.453 inch | 25.2 mm / 0.992 inch | 16.5 mm / 0.65 inch | 21.5 mm / 0.846 inch | 35.2 mm / 1.386 inch | 26.5 mm / 1.043 inch | 40.2 mm / 1.583 inch | 31.5 mm / 1.24 inch | 36.5 mm / 1.437 inch | 41.5 mm / 1.634 inch | 41.5 mm / 1.634 inch | 46.5 mm / 1.831 inch | 51.5 mm / 2.028 inch | 61.5 mm / 2.421 inch | 19.1 mm / 0.752 inch | 29.1 mm / 1.146 inch | 29.1 mm / 1.146 inch | 39.1 mm / 1.539 inch | 49.1 mm / 1.933 inch | 59.1 mm / 2.327 inch | 69.1 mm / 2.72 inch | 79.1 mm / 3.114 inch | 89.1 mm / 3.508 inch | 99.1 mm / 3.902 inch | 119.1 mm / 4.689 inch | 7.9 mm / 0.311 inch | 21.6 mm / 0.85 inch | 34.1 mm / 1.343 inch | 46.6 mm / 1.835 inch | 59.1 mm / 2.327 inch | 71.6 mm / 2.819 inch | 84.1 mm / 3.311 inch | 96.6 mm / 3.803 inch | 109.1 mm / 4.295 inch | 121.6 mm / 4.787 inch | 146.6 mm / 5.772 inch | 7.3 mm / 0.287 inch | 24.1 mm / 0.949 inch | 39.1 mm / 1.539 inch | 54.1 mm / 2.13 inch | 69.1 mm / 2.72 inch | 84.1 mm / 3.311 inch | 99.1 mm / 3.902 inch | 114.1 mm / 4.492 inch | 129.1 mm / 5.083 inch | 144.1 mm / 5.673 inch | 174.1 mm / 6.854 inch | 14 mm / 0.551 inch | 27.7 mm / 1.091 inch | 21.5 mm / 0.846 inch | 21.5 mm / 0.846 inch | 29 mm / 1.142 inch | 29 mm / 1.142 inch | 36.5 mm / 1.437 inch | 44 mm / 1.732 inch | 51.5 mm / 2.028 inch | 65.2 mm / 2.567 inch | 59 mm / 2.323 inch | 66.5 mm / 2.618 inch | 74 mm / 2.913 inch | 89 mm / 3.504 inch | 16.5 mm / 0.65 inch | 30.2 mm / 1.189 inch | 26.5 mm / 1.043 inch | 36.5 mm / 1.437 inch | 36.5 mm / 1.437 inch | 46.5 mm / 1.831 inch | 56.5 mm / 2.224 inch | 66.5 mm / 2.618 inch | 76.5 mm / 3.012 inch | 86.5 mm / 3.406 inch | 96.5 mm / 3.799 inch | 116.5 mm / 4.587 inch | 1.6 mm / 0.063 inch | 16.6 mm / 0.654 inch | 33.9 mm / 1.335 inch | 24.1 mm / 0.949 inch | 24.1 mm / 0.949 inch | 41.4 mm / 1.63 inch | 31.6 mm / 1.244 inch | 49.8 mm / 1.961 inch | 39.1 mm / 1.539 inch |

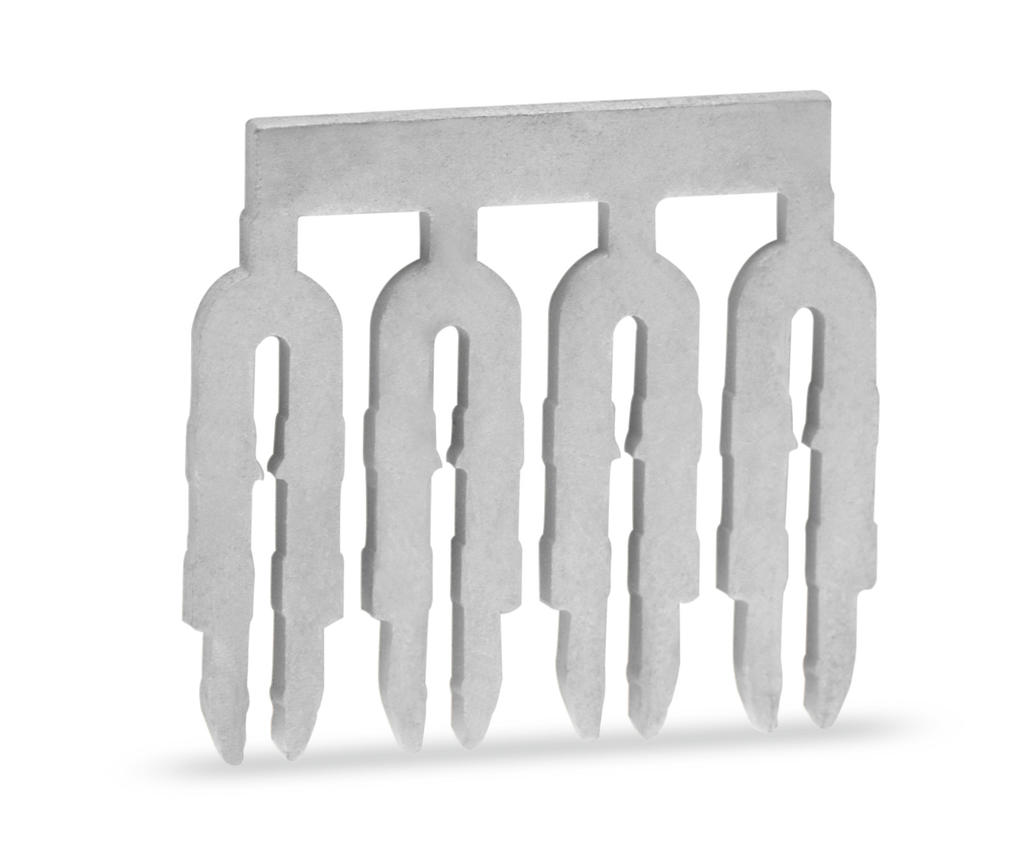

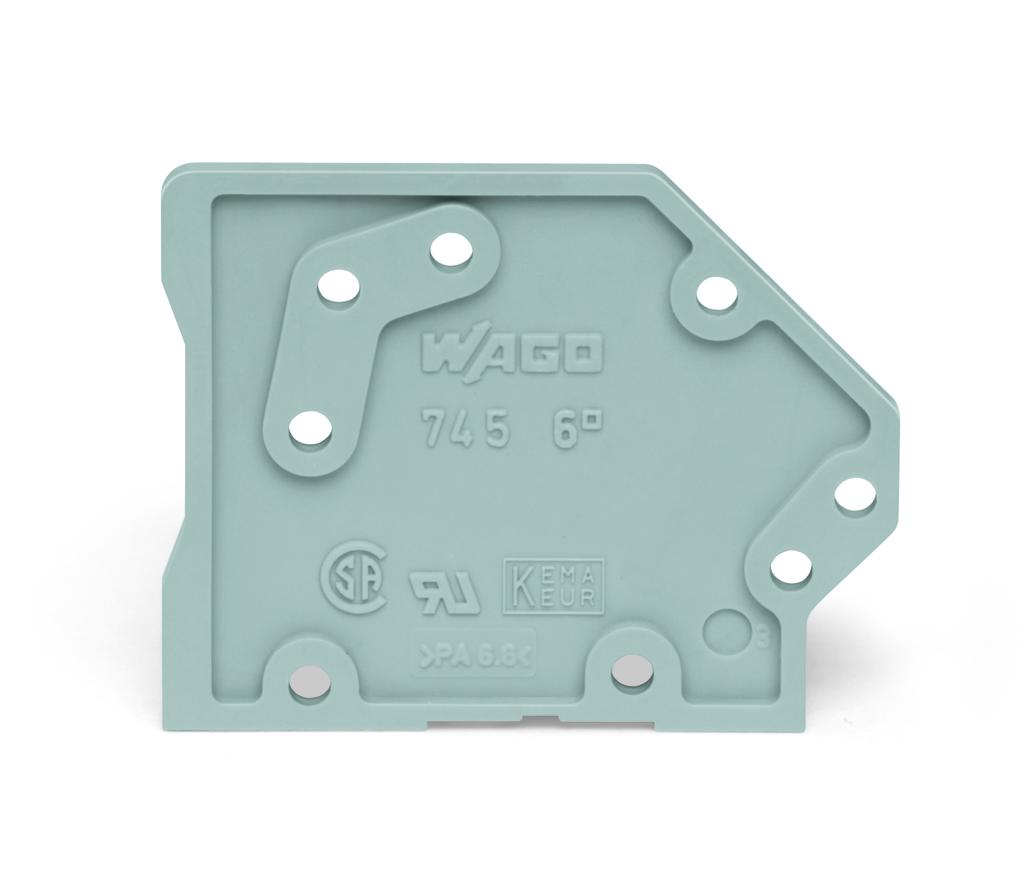

Модельный ряд
Серия: 745 (100 из 266)
- 745-100 745-102 745-102/005-000 745-103 745-104 745-104/005-000 745-105 745-105/005-000 745-106 745-107 745-108 745-108/000-006 745-109 745-110 745-112 745-1352 745-1353 745-1353/000-006 745-1354 745-1355 745-1356 745-1357 745-1358 745-1359 745-1360 745-1362 745-140 745-1402 745-1403 745-1404 745-1405 745-1406 745-1407 745-1408 745-1409 745-1410 745-1412 745-145 745-1452 745-1453 745-1454 745-1455 745-1456 745-1457 745-1458 745-1459 745-1460 745-1462 745-152 745-152/005-000 745-153 745-153/000-006 745-154 745-154/000-006 745-155 745-156 745-157 745-157/005-000 745-158 745-159 745-160 745-162 745-180 745-181 745-182 745-183 745-184 745-185 745-190 745-191 745-192 745-193 745-194 745-195 745-202 745-202/005-000 745-203 745-204 745-204/000-023 745-205 745-206 745-207 745-208 745-209 745-210 745-212 745-280 745-281 745-283 745-284 745-285 745-300 745-302 745-302/005-000 745-303 745-303/000-016/999-950 745-303/005-000 745-304 745-304/005-000 745-305
Классификация производителя
- PCB Interconnect
