Datasheet Wago 713-1431/105-000/997-407 — Даташит

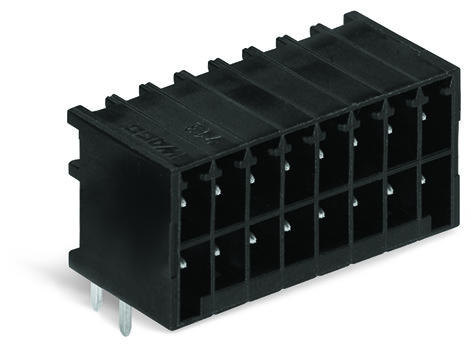

Вилка под пайку THR, 2-рядн.; 0.8 x 0.8 mm solder pin; угловые; 100% защита от неправильного подсоединения; упаковка в ленте на бобине; Шаг контактов 3,5 мм; 2 x 11-полюсов
Цены
THR MALE HEADER, 2-ROW 0.8 X 0.8 | |||
| 713-1431/105-000/997-407 | по запросу | ||
| 713-1431/105-000/997-407 Wago | по запросу | ||
Подробное описание
Параметры
| Цвет | black |
| Connector connection type | for PCBs |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Male connector/plug |
| Country of origin | DE |
| Габариты: глубина | 13.5 mm / 0.531 inch |
| Fire load | 0.117 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4050821309543 |
| Height | 15.7 mm / 0.618 inch |
| Height from the surface | 13.3 mm / 0.524 inch |
| Insulating material | Polyphtalamide (PPA GF) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Material group | I |
| Mismating protection | Yes |
| Number of Poles | 22 |
| Number of levels | 2 |
| Number of solder pins per potential | 1 |
| PCB contact | THR |
| Packaging type | bag |
| Pin spacing | 3.5 mm (0.138 inch) |
| Plated through-hole diameter (THR) | 1.3 (+ 0.1) мм |
| Rated current | 10 A |
| Rated impulse voltage (II / 2) | 2.5 kV |
| Rated impulse voltage (III / 2) | 2.5 kV |
| Rated impulse voltage (III / 3) | 2.5 kV |
| Rated voltage (II / 2) | 250 В |
| Rated voltage (III / 2) | 160 В |
| Rated voltage (III / 3) | 80 В |

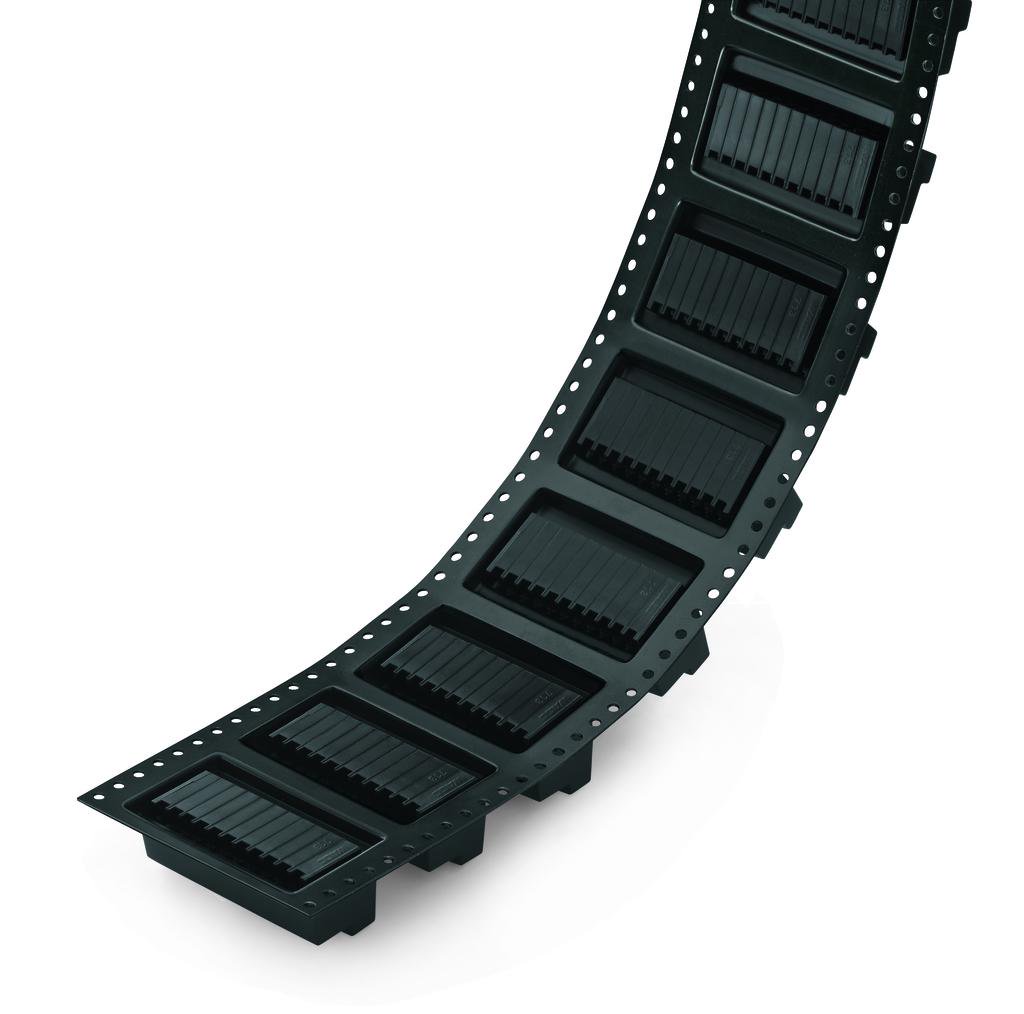

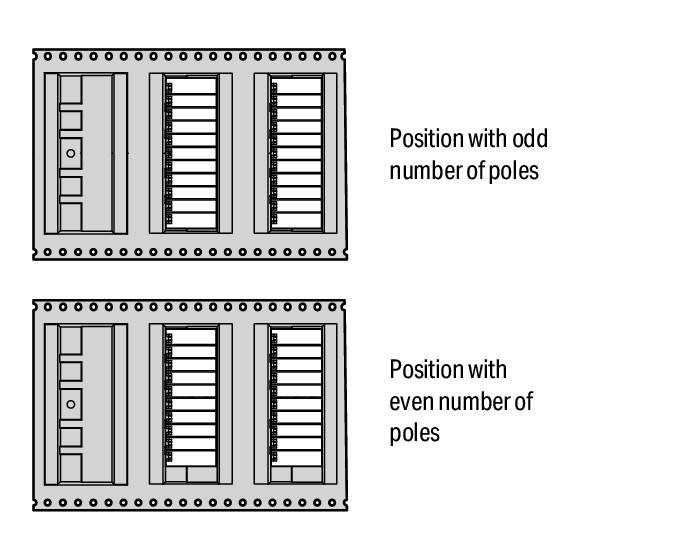

| Reel diameter of tape-and-reel packaging | 330 мм |
| Solder pin arrangement | over the entire male connector, in line |
| Solder pin dimensions | 0.8 x 0.8 mm |
| Solder pin length | 2.4 мм |

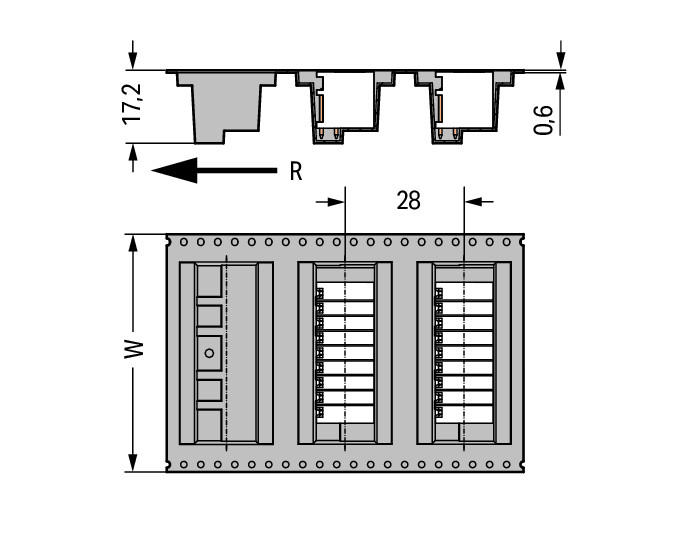

| Tape width | 56 мм |
| Total number of potentials | 22 |
| Вес | 6.011 г |
| Ширина | 40 mm / 1.575 inch |
