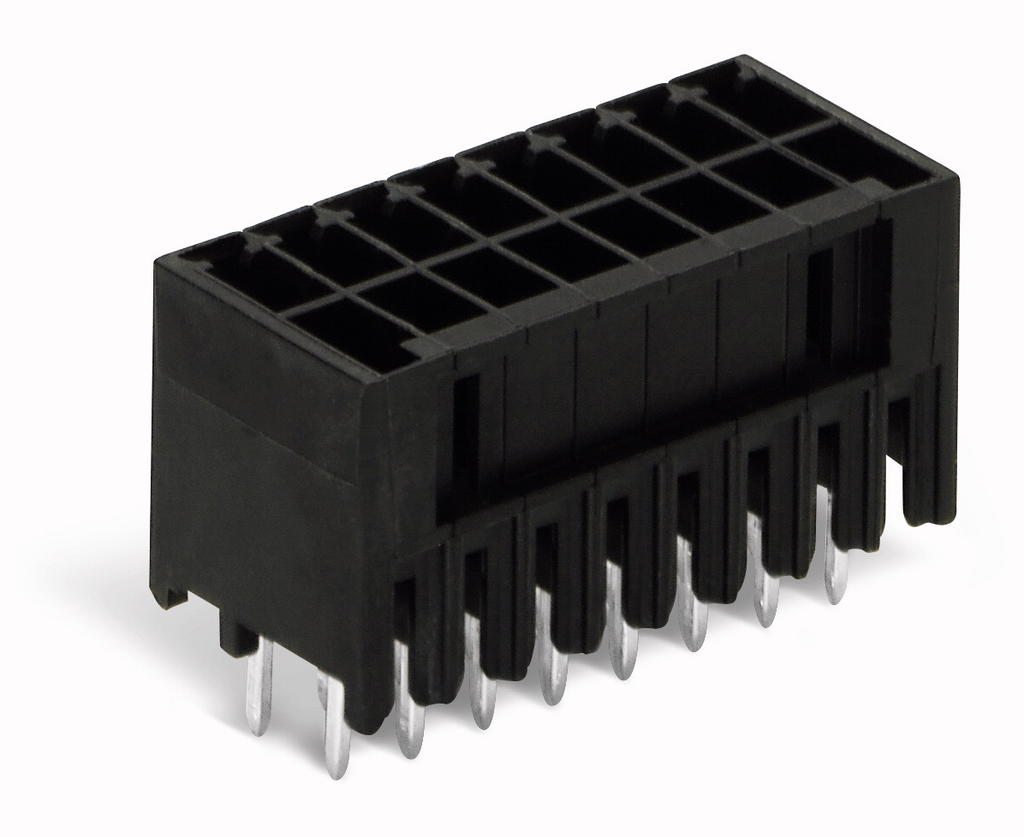

Datasheet Wago 713-1408/105-000 — Даташит
Вилка под пайку THR, 2-рядн.; 0.8 x 0.8 mm solder pin; прямые; 100% защита от неправильного подсоединения; Шаг контактов 3,5 мм; 2 x 8-полюсов
Цены
7 предложений от 3 поставщиков WAGO Pin strip (standard) 1735 Total number of pins 16 Contact spacing: 3.50 mm 713-1408/105-000 25 pc(s) | |||
| 713-1408/105-000 Wago | от 551 ₽ | ||
| 713-1408/105-000/997-406 | по запросу | ||
| 713-1408/105-000/997-406 Wago | по запросу | ||

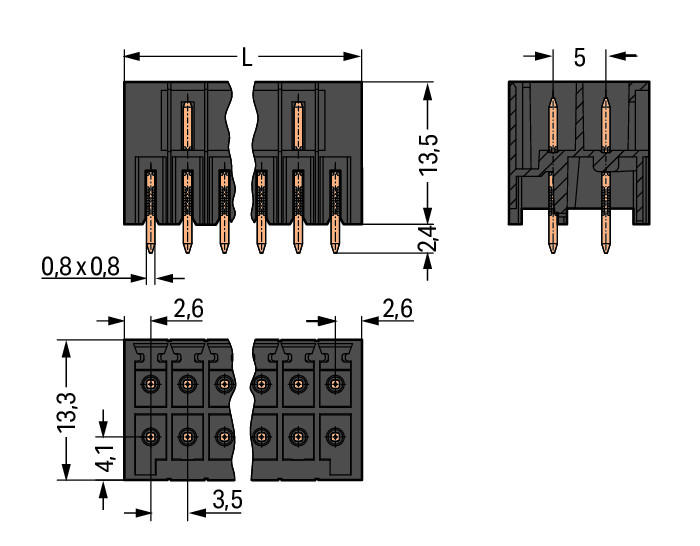

Подробное описание
Параметры
| Цвет | black |
| Connector connection type | for PCBs |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Male connector/plug |
| Country of origin | PL |
| Габариты: глубина | 13.3 mm / 0.524 inch |
| Fire load | 0.088 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4050821155713 |
| Height | 15.9 mm / 0.626 inch |
| Height from the surface | 13.5 mm / 0.531 inch |
| Insulating material | Polyphtalamide (PPA GF) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Material group | I |
| Mating direction to the PCB | 90 ° |
| Mismating protection | Yes |
| Number of Poles | 16 |
| Number of levels | 2 |
| Number of solder pins per potential | 1 |
| PCB contact | THR |
| Pin spacing | 3.5 mm (0.138 inch) |
| Plated through-hole diameter (THR) | 1.2 (+ 0.1) мм |
| Product Group | 3 (Multi Conn. System) |
| Rated current | 10 A |
| Rated impulse voltage (II / 2) | 2.5 kV |
| Rated impulse voltage (III / 2) | 2.5 kV |
| Rated impulse voltage (III / 3) | 2.5 kV |
| Rated voltage (II / 2) | 250 В |
| Rated voltage (III / 2) | 160 В |
| Rated voltage (III / 3) | 80 В |
| Solder pin arrangement | over the entire male connector, in line |
| Solder pin dimensions | 0.8 x 0.8 mm |
| Solder pin length | 2.4 мм |
| Total number of potentials | 16 |
| Вес | 4.156 г |
| Ширина | 29.5 mm / 1.161 inch |
