Datasheet Wago 294-5235 — Даташит

Производитель	Wago
Серия	294
Модель	294-5235

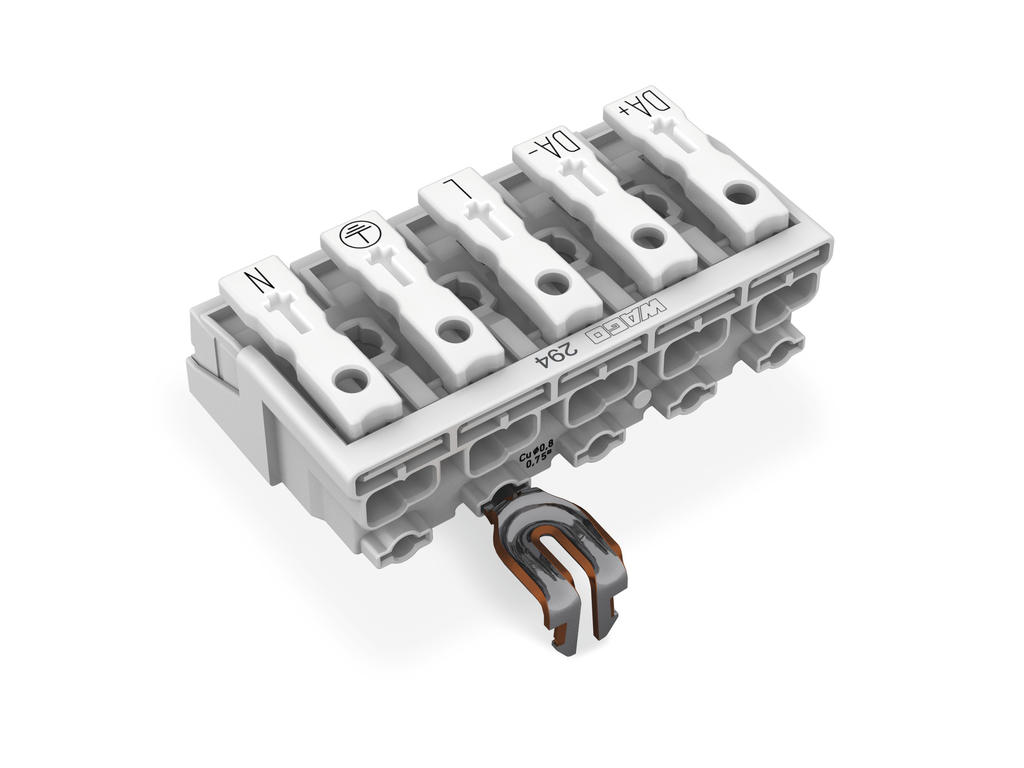

Разъем питания; с защелкивающимся заземляющим контактом; с защелкивающимися монтажными ножками; DA+ DA- L PE N; 5-полюсный

Цены

Купить 294-5235 на РадиоЛоцман.Цены Соединитель для светильников, с защелк. контактом, PE + DA / DA / L / PE / N
Амарид-Электро Россия	294-5235 Wago Оф. дистрибьютор	270 ₽
Akcel Весь мир	294-5235 Wago	по запросу
Augswan Весь мир	294-5235	по запросу

LED-драйверы MOSO для индустриальных приложений

Параметры

Actuation type	Operating tool Push-button
Clamping spring material	Chrome nickel spring steel (CrNi)
Цвет	white
Connectable conductor materials	Copper
Connection technology	Push-in CAGE CLAMP®
Connection technology 2	PUSH WIRE®
Connection type (1)	External 1
Connection type (2)	Internal 2
Connection type (3)	Internal 3
Connection type (4)	Internal 4
Contact material	Electrolytic copper (Ecu)
Contact plating	tin-plated
Country of origin	PL
Габариты: глубина	27.3 mm / 1.075 inch
Fine-stranded conductor	0.5 … 2.5 mm² / 18 … 14 AWG
Fine-stranded conductor with ferrule with plastic collar	0.5 … 1.5 mm² / 18 … 16 AWG
Fine-stranded conductor with ferrule without plastic collar	0.5 … 1.5 mm² / 18 … 16 AWG
Fine-stranded conductor with ferrule, push-in termination, from	0.5 mm² / 18 AWG
Fine-stranded conductor with insulated ferrule (2)	0.5 … 1 mm² / 18 … 16 AWG
Fine-stranded conductor with insulated ferrule (3)	0.5 … 0.75 mm² / 18 AWG
Fine-stranded conductor with uninsulated ferrule (2)	0.5 … 1.5 mm² / 18 … 14 AWG
Fine-stranded conductor with uninsulated ferrule (3)	0.5 … 1 mm² / 18 AWG
Fire load	0.302 MJ
Flammability class per UL94	V0
GTIN	4050821098447
Ground function	with snap-in GND contact
Height from the surface	17 mm / 0.669 inch
Insulating material	Polycarbonate (PC)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking	DA+ DA- L PE N
Material group	III a
Mounting type	Snap-in mounting foot
Number of Poles	5
Number of connection points	1
Number of connection points (connection type)	2
Number of connection types	4
Packaging type	bag
Product Group	8 (Misc. Chassis Mount Blocks)
Rated current	24 A
Rated current (2)	24 A
Rated current (3)	16 A
Rated impulse voltage (II / 2)	4 kV
Rated impulse voltage (II / 2) 2	4 kV
Rated voltage (II / 2)	500 В
Rated voltage (II / 2) 2	500 В
Ratings according to 2	IEC/EN 60998-2-2
Ratings note	Connection points
Ratings note 2	Connection points
Solid conductor	0.5 … 2.5 mm² / 18 … 12 AWG
Solid conductor (2)	0.5 … 2.5 mm² / 18 … 14 AWG
Solid conductor (3)	0.5 … 1.5 mm² / 18 … 16 AWG
Solid conductor (4)	0.5 … 0.75 mm² / 18 AWG
Solid conductor, push-in termination	0.5 … 2.5 mm² / 18 … 12 AWG
Stranded conductor	0.5 … 2.5 mm² / 18 … 14 AWG
Strip length	8 … 9 mm / 0.31 … 0.35 Inch
Strip length (2)	8 … 9 mm / 0.31 … 0.35 Inch
Temperature stability	120 °C
Total number of connection points	25
Total number of potentials	5
Type of wiring	Side-entry wiring
Вес	16.256 г
Ширина	50 mm / 1.969 inch
