Datasheet Texas Instruments TMS320DM8147 — Даташит

Производитель	Texas Instruments
Серия	TMS320DM8147

Datasheets

Цены

Купить TMS320DM8147 на РадиоЛоцман.Цены — от 82 до 12 515 ₽ 29 предложений от 18 поставщиков Интегральные микросхемы Встроенные микросхемы - Цифровые сигнальные процессоры (ЦСП)
EIS Components Весь мир	TMS320DM8147BCYE1 Texas Instruments	82 ₽	Купить
LIXINC Electronics Весь мир	TMS320DM8147BCYE1 Texas Instruments	от 205 ₽	Купить
Элитан Россия	TMS320DM8147SCYE2 Texas Instruments	9 346 ₽	Купить
ЭИК Россия	TMS320DM8147SCYE0 Texas Instruments	от 12 515 ₽	Купить

Статус

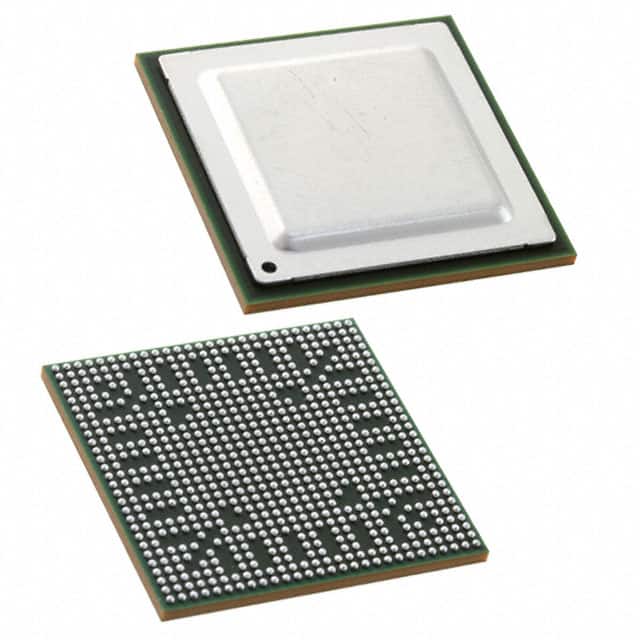

Корпус / Упаковка / Маркировка

Параметры

Parameters / Models	DM8147BCIS0	DM8147SCIS0	TMS320DM8147BCYE0	TMS320DM8147BCYE1	TMS320DM8147BCYE2	TMS320DM8147SCYE0	TMS320DM8147SCYE1	TMS320DM8147SCYE2	ZDM8147L3MOBCYE1
ARM CPU	1 ARM Cortex-A8	1 ARM Cortex-A8	1 ARM Cortex-A8	1 ARM Cortex-A8	1 ARM Cortex-A8	1 ARM Cortex-A8	1 ARM Cortex-A8	1 ARM Cortex-A8	1 ARM Cortex-A8
ARM MHz, Max.	1000	1000	1000	1000	1000	1000	1000	1000	1000
Applications	Video Security	Video Security	Video Security	Video Security	Video Security	Video Security	Video Security	Video Security	Video Security
DRAM	LPDDR,DDR2,DDR3	LPDDR,DDR2,DDR3	LPDDR,DDR2,DDR3	LPDDR,DDR2,DDR3	LPDDR,DDR2,DDR3	LPDDR,DDR2,DDR3	LPDDR,DDR2,DDR3	LPDDR,DDR2,DDR3	LPDDR,DDR2,DDR3
DSP	1 C674x	1 C674x	1 C674x	1 C674x	1 C674x	1 C674x	1 C674x	1 C674x	1 C674x
DSP MHz, Max.	750	750	750	750	750	750	750	750	750
EMAC	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
I2C	4	4	4	4	4	4	4	4	4
On-Chip L2 Cache	512 KB (ARM),256 KB (DSP)	512 KB (ARM),256 KB (DSP)	512 KB (ARM),256 KB (DSP)	512 KB (ARM),256 KB (DSP)	512 KB (ARM),256 KB (DSP)	512 KB (ARM),256 KB (DSP)	512 KB (ARM),256 KB (DSP)	512 KB (ARM),256 KB (DSP)	512 KB (ARM),256 KB (DSP)
Operating Systems	Linux,DSP/BIOS	Linux,DSP/BIOS	Linux,DSP/BIOS	Linux,DSP/BIOS	Linux,DSP/BIOS	Linux,DSP/BIOS	Linux,DSP/BIOS	Linux,DSP/BIOS	Linux,DSP/BIOS
Рабочий диапазон температур, C	от 0 до 90	от 0 до 90	от 0 до 90	от 0 до 90	от 0 до 90	от 0 до 90	от 0 до 90	от 0 до 90	от 0 до 90
PCI/PCIe	PCIe	PCIe	PCIe	PCIe	PCIe	PCIe	PCIe	PCIe	PCIe
Pin/Package	684FCBGA	684FCBGA	684FCBGA	684FCBGA	684FCBGA	684FCBGA	684FCBGA	684FCBGA	684FCBGA
Rating	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog
SPI	4	4	4	4	4	4	4	4	4
UART, SCI	6	6	6	6	6	6	6	6	6
USB	2	2	2	2	2	2	2	2	2
Video Acceleration	1 HDVICP	1 HDVICP	1 HDVICP	1 HDVICP	1 HDVICP	1 HDVICP	1 HDVICP	1 HDVICP	1 HDVICP
Video Port, Configurable	2 Output,2 Input,2 SD DACs,1 HDMI TX	2 Output,2 Input,2 SD DACs,1 HDMI TX	2 Output,2 Input,2 SD DACs,1 HDMI TX	2 Output,2 Input,2 SD DACs,1 HDMI TX	2 Output,2 Input,2 SD DACs,1 HDMI TX	2 Output,2 Input,2 SD DACs,1 HDMI TX	2 Output,2 Input,2 SD DACs,1 HDMI TX	2 Output,2 Input,2 SD DACs,1 HDMI TX	2 Output,2 Input,2 SD DACs,1 HDMI TX
Video Resolution/Frame Rate	1080p,60 FPS or less	1080p,60 FPS or less	1080p,60 FPS or less	1080p,60 FPS or less	1080p,60 FPS or less	1080p,60 FPS or less	1080p,60 FPS or less	1080p,60 FPS or less	1080p,60 FPS or less

Экологический статус

Application Notes

• Скачать
  TMS320DM814x/AM387x Power Estimation Spreadsheet (Rev. A)
  PDF, 18 Кб, Версия: A, Файл опубликован: 10 сен 2012
  This article describes how to model power consumption for a user's application and to present some measured power scenarios for the TMS320DM814x DaVinciв„ў digital media processors and AM387x Sitaraв„ў ARMВ® microprocessors (MPUs) PG2.x and PG3.x samples using a provided power estimation spreadsheet.This article has been contributed to the TI Developer Wiki. To see the most recen
• Скачать
  TI814x-DDR3-Init-U-Boot
  PDF, 37 Кб, Файл опубликован: 31 окт 2011
  This article describes how to initialize the DDR3 and uBoot on the TMS320DM814x DaVinciв„ў digital media processors (DSP) and AM387x ARMВ® microprocessors (MPUs) PG2.x samples using the software leveling process.This article has been contributed to the TI Embedded Processors Wiki. To see the most recently updated version or to contribute, visit this topic at:
• Скачать
  Error Detection and Correction Mechanism of TMS320C64x+/C674x (Rev. A)
  PDF, 80 Кб, Версия: A, Файл опубликован: 19 июл 2013
  This application report describes the error detection and correction mechanism of the C64x+/C674x megamodule L1P and L2 memories implemented on some devices. Depending on the type of application, these mechanisms are used to either provide diagnostic measures to detect faults in the memory that could lead to unacceptable risk for the user or to increase the availability of the system.
• Скачать
  High-Speed Interface Layout Guidelines (Rev. G)
  PDF, 814 Кб, Версия: G, Файл опубликован: 27 июл 2017
  As modern bus interface frequencies scale higher, care must be taken in the printed circuit board (PCB) layout phase of a design to ensure a robust solution.
• Скачать
  Introduction to TMS320C6000 DSP Optimization
  PDF, 535 Кб, Файл опубликован: 6 окт 2011
  The TMS320C6000™ Digital Signal Processors (DSPs) have many architectural advantages that make them ideal for computation-intensive real-time applications. However to fully leverage the architectural features that C6000™ processors offer code optimization may be required. First this document reviews five key concepts in understanding the C6000 DSP architecture and optimization. Then

Модельный ряд

Классификация производителя

• Semiconductors> Processors> Digital Signal Processors> Media Processors > DaVinci Video Processors
