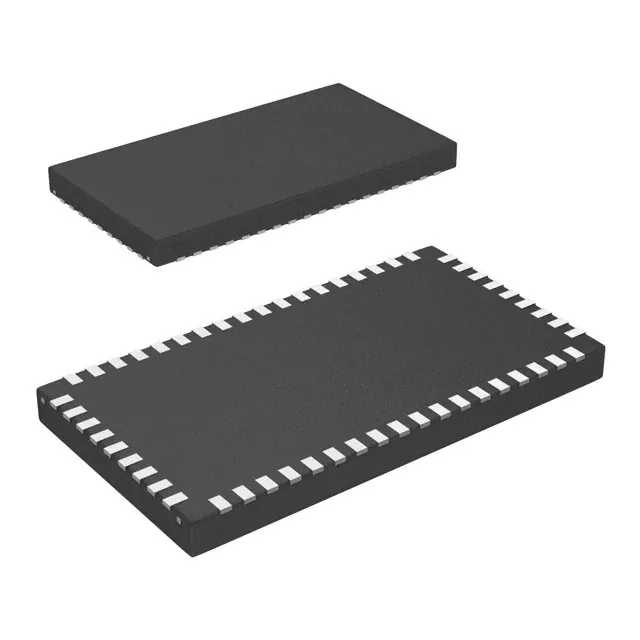

DS100MB201
www.ti.com SNLS333A – APRIL 2011 – REVISED APRIL 2013 DS100MB201 Dual Lane 2:1/1:2 Mux/Buffer with Equalization
Check for Samples: DS100MB201 FEATURES DESCRIPTION The DS100MB201 is a dual lane 2:1 multiplexer and
1:2 switch or fan-out buffer with signal conditioning
suitable for 10GE, Fibre Channel, Infiniband,
SATA/SAS and other high-speed bus applications up
to 10.31215 Gbps. The device performs receive
equalization allowing maximum flexibility of physical
placement within a system. The receiver's continuous
time linear equalizer (CTLE) provides a boost to
compensate for 10” of 4 mil FR4 stripline at 10.3125
Gbps. The DS100MB201 is capable of opening an
input eye that is completely closed due to intersymbol interference (ISI) induced by the interconnect
medium. The transmitter features a programmable
amplitude voltage levels to be selected from 600
mVp-p to 800 mVp-p. The signal conditioning settings
are programmable with register control. 1 2 Up to 10.3125 Gbps
Dual Lane 2:1 Mux, 1.2 Switch or Fanout
Adjustable Transmit Differential Output
Voltage (VOD)
6 kV HBM ESD Rating
3.3V Tolerant SMBus Interface
High Speed Signal flow–thru Pinout …
