Корпус Intersil TQFN — Даташит

Производитель	Intersil
Серия	TQFN

Параметры

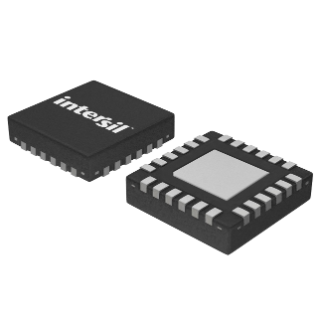

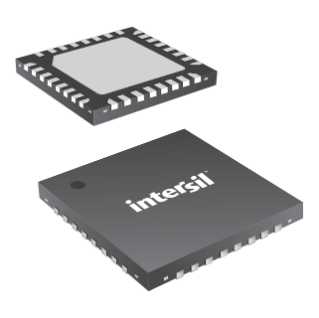

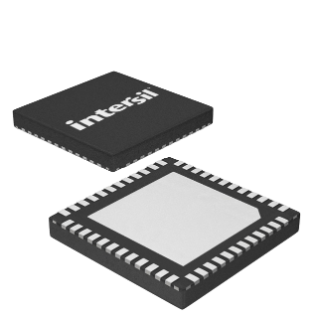

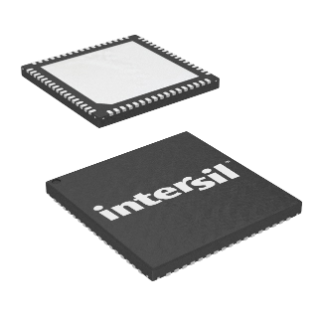

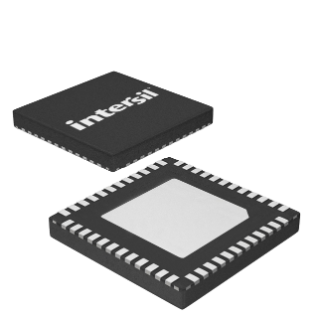

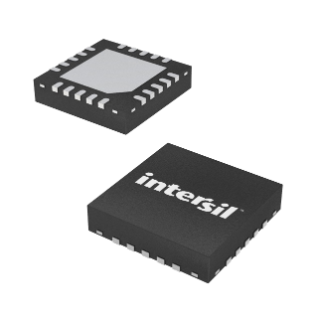

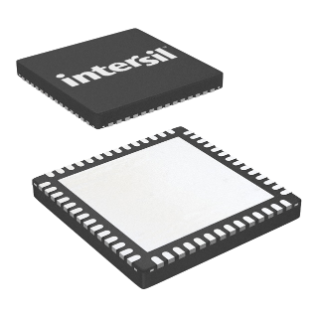

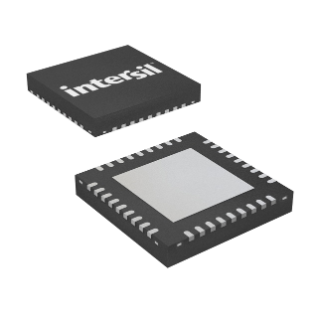

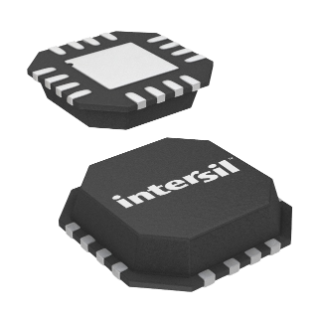

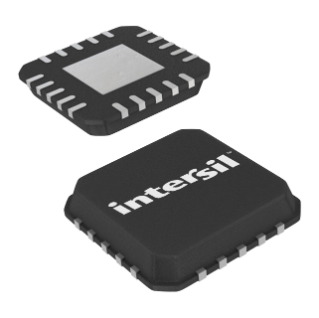

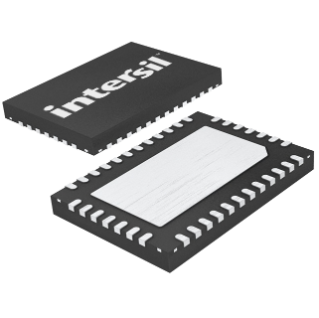

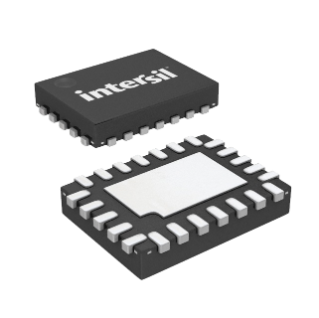

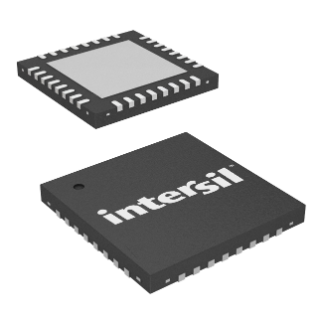

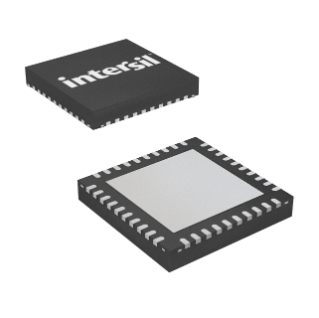

Parameters / Models	L12.3x3A	L12.3x3B	L12.3x3Z	L16.3x3A	L16.3x3C	L16.3x3D	L16.4x4C	L16.4x4F	L16.4x4G	L20.3x4A	L20.4x4A	L20.4x4D	L20.4x4E	L24.4x4E	L24.4x4F	L24.4x4J	L24.4x5C	L28.4x4	L28.4x4A	L28.4x5C	L28.5x5A	L28.5x5B	L32.4x4	L32.4x4D	L32.4x5A	L32.5x5A	L32.5x5C	L32.5x5E	L32.5x5F	L32.5x5G	L36.6x6	L38.5x7C	L40.5x5	L40.5x5A	L40.5x5D	L48.6x6	L48.7x7D	L56.8x8D	L68.8x8	MDP0046
Семейство	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN	TQFN
Количество выводов	12	12	12	16	16	16	16	16	16	20	20	20	20	24	24	24	24	28	28	28	28	28	32	32	32	32	32	32	32	32	36	38	40	40	40	48	48	56	68	24
Длина, мм	3.00	3.00	3.00	3.00	3.00	3.00	4.00	4.00	4.00	4.00	4.00	4.00	4.00	4.00	4.00	4.00		4.00	4.00	4.00	5.00	5.00	4.00	4.00	4.00	5.00	5.00	5.00	5.00	5.00	6.00		5.00		5.00	6.00		8.00	8.00	4.00
Ширина, мм	3.00	3.00	3.00	3.00	3.00	3.00	4.00	4.00	4.00	3.00	4.00	4.00	4.00	4.00	4.00	4.00	4.00	4.00	4.00	5.00	5.00	5.00	4.00	4.00	5.00	5.00	5.00	5.00	5.00	5.00	6.00	5.00	5.00		5.00	6.00		8.00	8.00	5.00
Толщина, мм	0.75	0.75	0.75	0.80	0.75	0.75	0.75	0.75	0.75	0.75	0.80	0.75	0.75	0.75	0.75	0.75	0.75	0.75		0.75	0.75	0.75	0.75	0.70	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.80	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75
Высота макс., мм	0.75			0.80	0.80	0.80		0.80	0.75	0.80	0.80		0.75	0.80	0.80	0.80	0.75	0.80				0.80	0.80	0.75		0.80	0.80	0.80	0.80	0.80	0.80	0.80	0.80	0.80	0.80	0.80		0.75
Вес, г	0.024		0.02	0.024	0.02439	0.024		0.043	0.042	0.0325	0.043	0.044	0.044		0.04	0.054	0.049	0.037	0.037	0.054	0.07	0.07	0.043	0.05		0.068	0.068	0.068	0.07	0.068	0.102	0.11	0.074	0.066	0.065	0.102	0.131	0.189	0.168	0.054
Шаг выводов, мм	0.50		0.50	0.50	0.50	0.50		0.65	0.65	0.50	0.50		0.50	0.50	0.50	0.50	0.50	0.40				0.50	0.40	0.40		0.50	0.50	0.50	0.50	0.50	0.50	0.50	0.40	0.40	0.40	0.40		0.50
Пиковая температура пайки, °C	240	240	240	240	240	240		240		240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240	240
Пиковая температура для бессвинцовых корпусов, °C	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260
Индекс корпуса	L12.3X3A	L12.3X3B	L12.3X3Z	L16.3X3A	L16.3X3C	L16.3X3D	L16.4X4C	L16.4X4F	L16.4X4G	L20.3X4A	L20.4X4A	L20.4X4D	L20.4X4E	L24.4X4E	L24.4X4F	L24.4X4J	L24.4X5C	L28.4X4	L28.4X4A	L28.4X5C	L28.5X5A	L28.5X5B	L32.4X4	L32.4X4D	L32.4X5A	L32.5X5A	L32.5X5C	L32.5X5E	L32.5X5F	L32.5X5G	L36.6X6	L38.5X7C	L40.5X5	L40.5X5A	L40.5X5D	L48.6X6	L48.7X7D	L56.8X8D	L68.8X8	MDP0046
